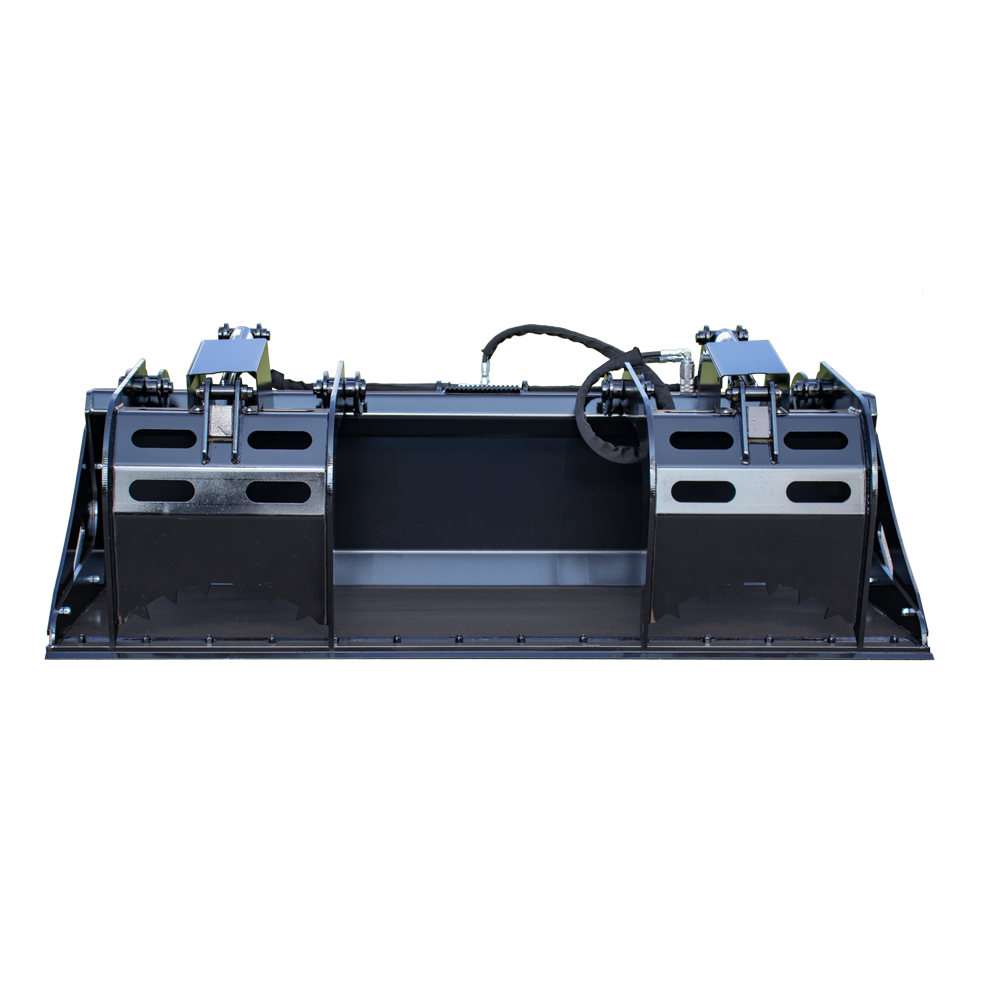

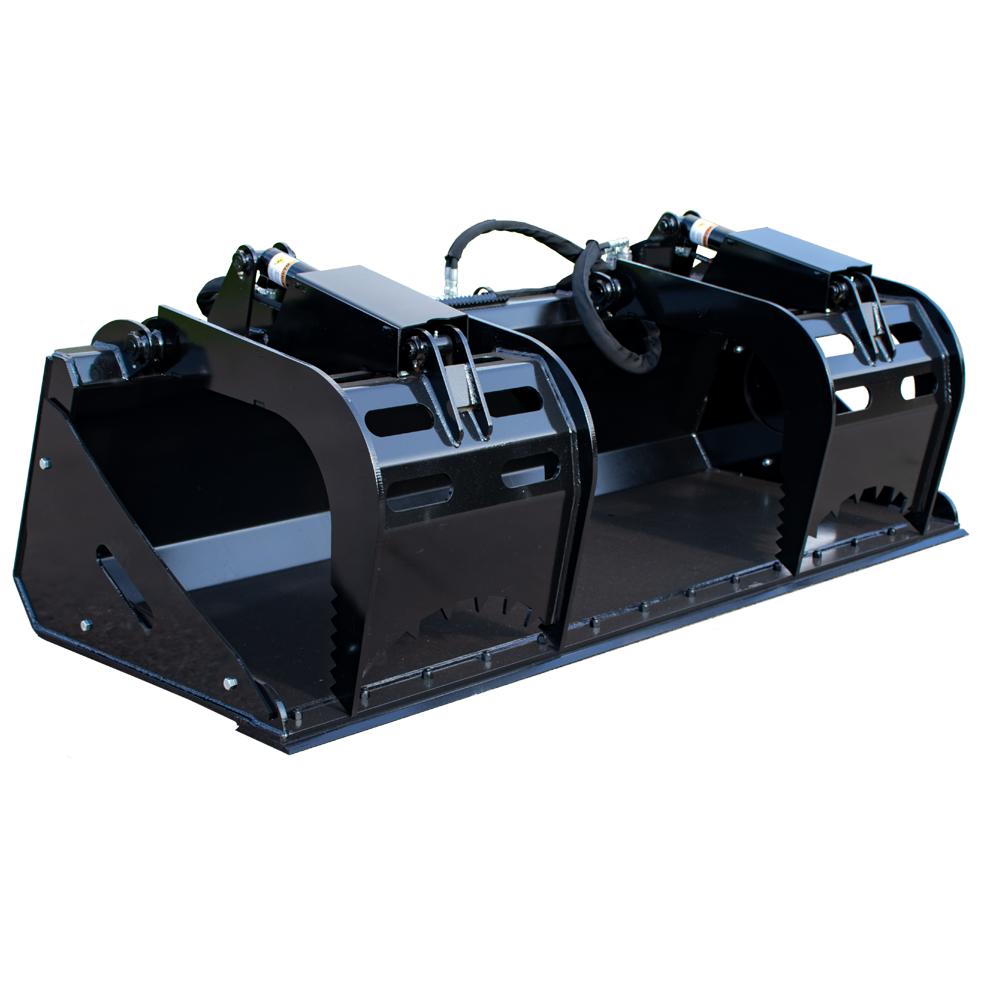

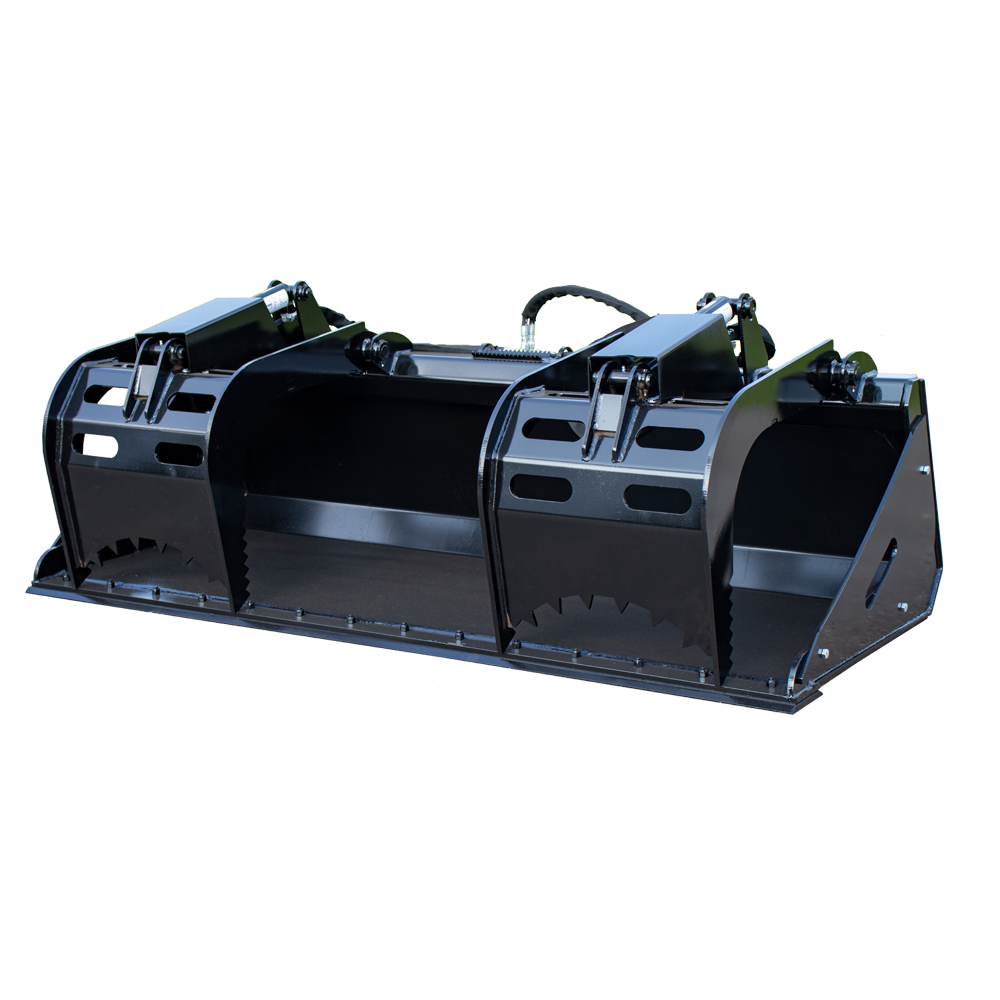

Dirt Bucket Grapple

The Namtec Dirt Bucket Grapple is your go-to attachment when you need to efficiently gather and contain a large volume of debris within the bucket, leaving no remnants behind.

Crafted with precision, featuring 1/2” thick bolt-on removable side plates and six under strap supports (1/2” thick by 2” or 3”, depending on bucket thickness). This unit is equipped with a fully welded 1/2” cutting edge or the option for a 1/2” bolt-on reversible cutting edge.

The sides of the grapple are constructed with 1/2” thick steel, while the grapple flats are forged from 5/16” thick steel. The independent action of the grapples ensures secure handling of uneven loads, and with visibility cutouts, there are no blind spots when the grapples are open.

Features

• Greaseable pivot points
• 3/16” or 1/4“ bucket material available
• 1/2" fully welded on cutting edge (better for digging)
• Optional 1/2" bolt-on reversible cutting edge (better for scraping)
• 1/2″ end plates for bolt-on side to attach
• 1/2″ thick steel grapple sides
• 5/16” thick steel grapple flats
• Twin 3,000 psi hydraulic cylinders
• 1/2″ x 2″ or 3” under support straps, depending on bucket thickness
• Universal quick attach plate

Specifications

• 68”: Length - 38”, Width - 68", Height - 28", Weight - 900 lbs
• 72”: Length - 38”, Width - 72", Height - 28", Weight - 950 lbs
• 78”: Length - 38”, Width - 78", Height - 28", Weight - 1000 lbs
• 84”: Length - 38”, Width - 84", Height - 28", Weight - 1050 lbs
